voltage monitoring Tele Haase OUH3W 230VAC / OUH3W230VAC

102.000017

102,00 EUR

incl. 19 % VAT excl. shipping costs

Product.Nr. 110644076812

Currently not available

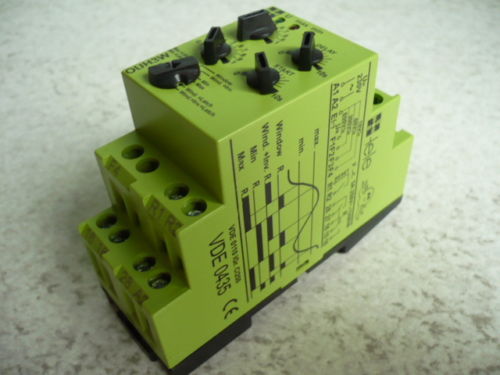

voltage monitoring Tele Haase OUH3W 230VAC / OUH3W230VAC

Voltage monitoring device for DC and AC voltage Tele Haase control Ges.mbH Type OUH3W 230V AC.





You are purchasing a unused fully functional voltage monitoring. The exact amount you can enter below the price under number.

Description: Monitoring relay in 1-phase mains - OCTO series

- Connection of the neutral conductor optional
- with adjustable thresholds separately adjustable trip delay and start-up suppression
- Nominal consumption 2VA (2W)
- Supply voltage = 24 to 230V AC selectable via transformer modules
- Contact type 1 change & 1 NO
- Width 35mm x Height 87mm x depth 70mm
- installation design
- Operating voltage: 250V AC
- Switching capacity bayed 5A / 250V AC (1250VA)
- Range 1 phase (N) 600 V 50 Hz
- Degree of protection IP40
- Rated impulse withstand voltage 4 kV
- Ambient temperature -25 - + 55 ° C


Dimensions: Width 35mm x Height 87mm x depth 70mm.
